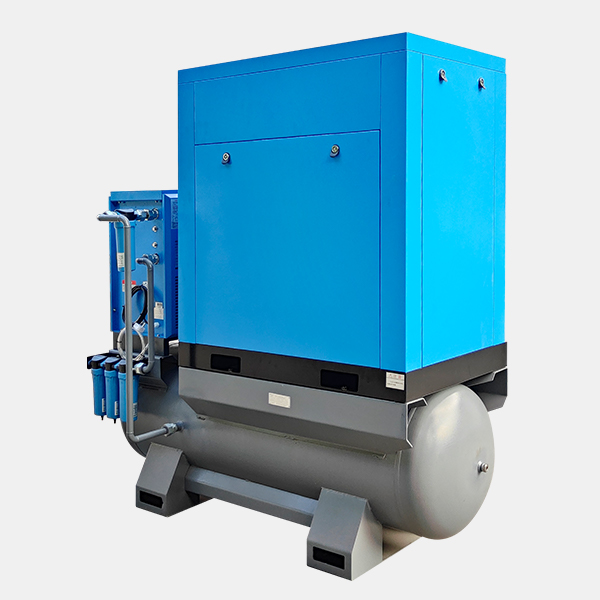

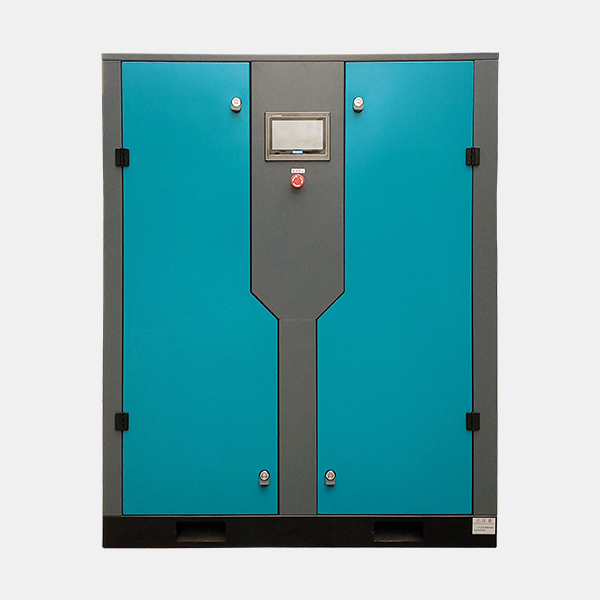

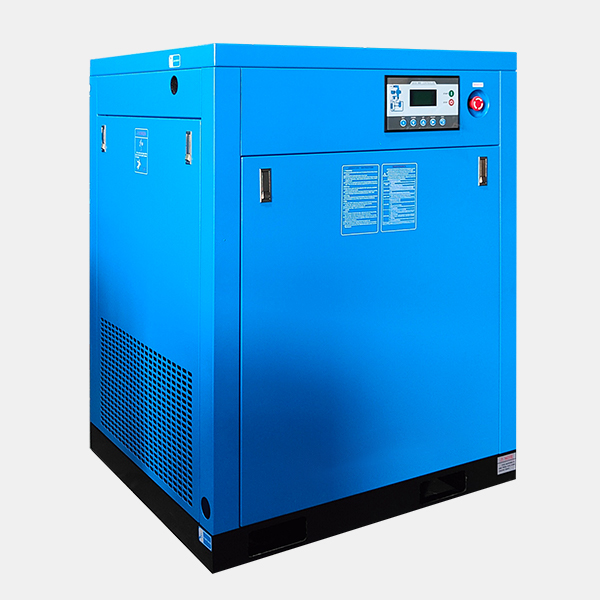

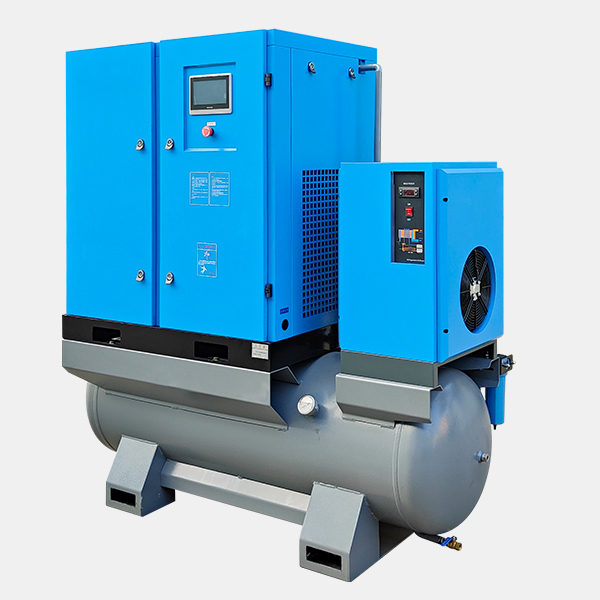

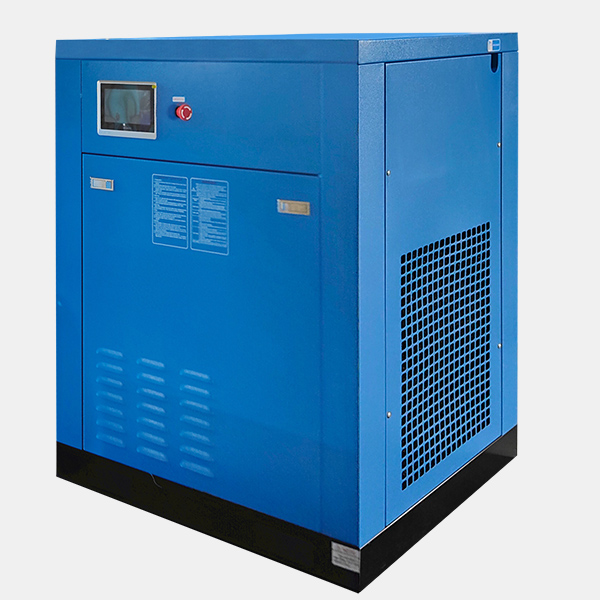

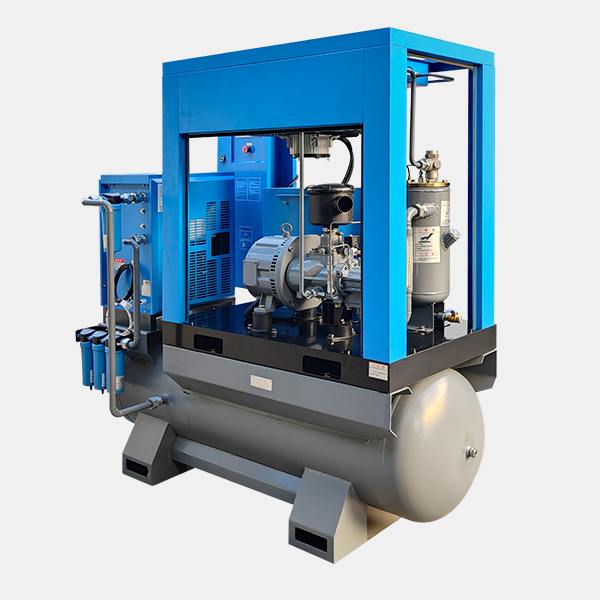

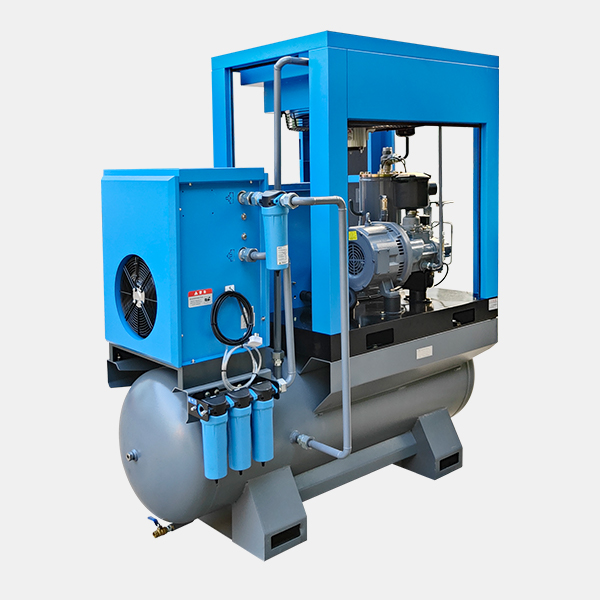

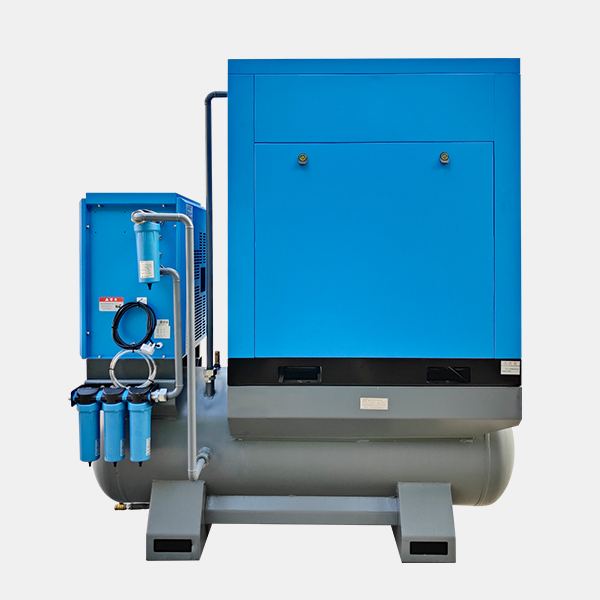

High Pressure Air Compressor for Laser Cutting and Gas Plants
Compact • Reliable • Built for Demanding Applications
Our High-Pressure Air Compressor is engineered for critical applications requiring compressed air at pressures above 16 bar. With robust construction, precise control, and continuous-duty performance, it is widely used in industries such as PET bottle blowing, laser cutting, leak testing, and power plants.
Key Features
● High Pressure Output：Delivers stable compressed air at pressures up to 40 bar, suitable for specialized and heavy-duty tasks.
● Heavy-Duty Air End：Precision-machined and designed for long service life under continuous high-pressure operation.
● Efficient Cooling System：Integrated aftercooler and inter-stage cooling to reduce air temperature and moisture content.
● Smart Control Panel：Digital PLC controller with real-time pressure, temperature, and safety monitoring.
● Oil & Water Separation System：Ensures clean, dry air output with minimal oil carryover.
● Compact Footprint：Space-saving design with skid-mounted or integrated tank configurations available.
Technical Specification
● Power Range: 15 kW – 250 kW.
● Working Pressure: 16 – 40 bar (adjustable by model).
● Free Air Delivery (FAD): 1.2 – 30.0 m³/min.
● Cooling Method: Air-cooled or Water-cooled.
● Drive Type: Direct Drive or Coupling.
● Control Mode: PLC + Safety Protection System.
● Noise Level: ≤70–78 dB(A).
● Optional: High-pressure air dryer, receiver tank, pre/post filters Model selection depends on required pressure, flow, and application.
Typical Applications
● PET Bottle Blowing (25–40 bar).
● Laser Cutting & Plasma Machines.
● Pressure Testing Systems.
● Shipyards & Marine Applications.
● Power Plant Instrumentation Air.
● High-Altitude or Long-Pipeline Pneumatics.
Custom Options Available
● Booster-type high-pressure compressors.
● Oil-free high-pressure models (for medical/food use).
● Explosion-proof versions (for hazardous areas).
● Remote monitoring / IoT modules.
● Stainless steel piping and high-pressure tanks.
