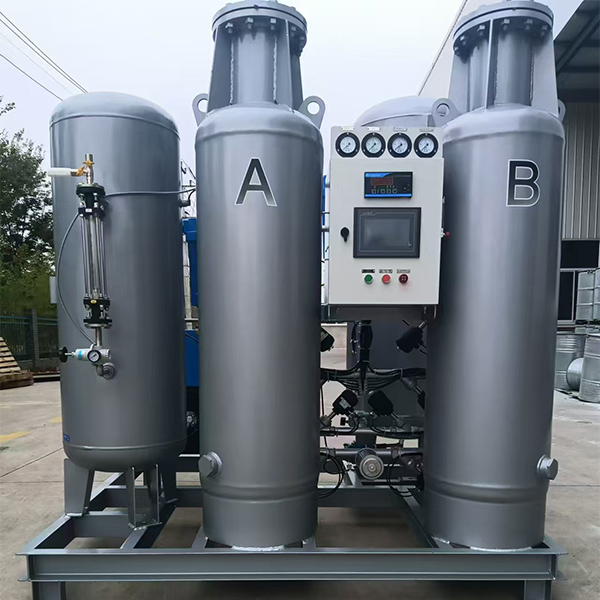

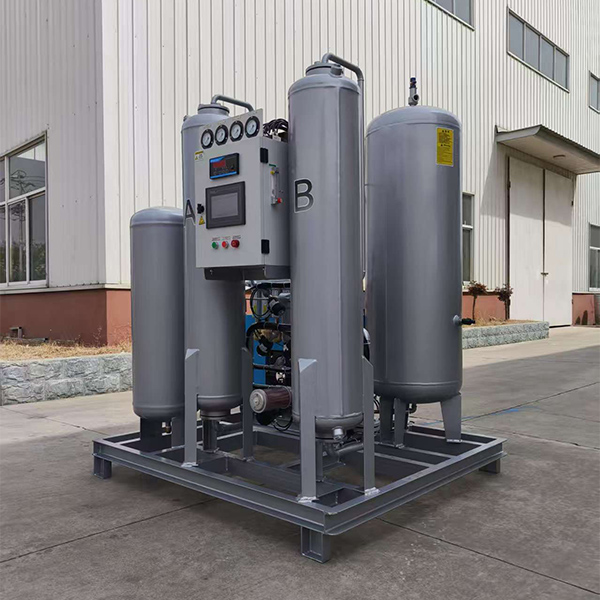

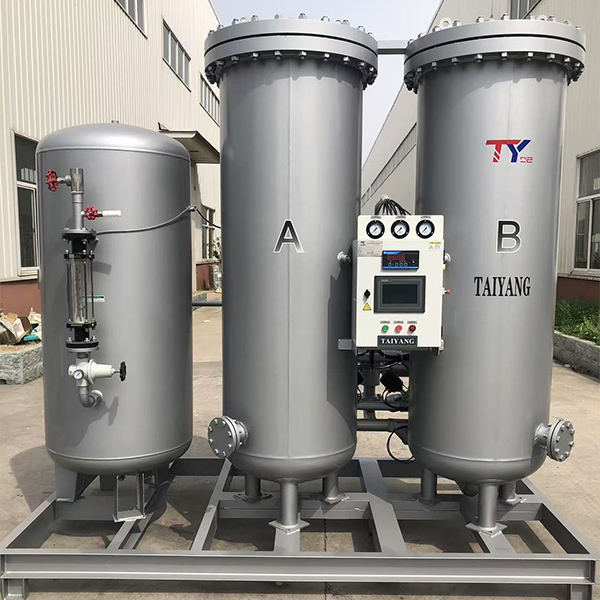

Industrial PSA Oxygen Generator System for On-site Gas Supply

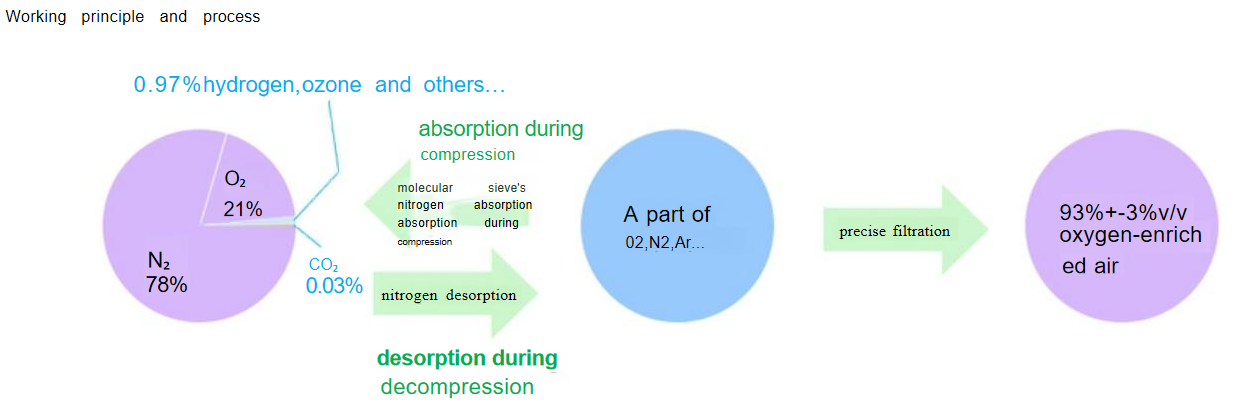

PSA oxygen generator is a fully automatic equipment for directly producing oxygen from compressed air by using the zeolite molecular sieve as an adsorbent, utilizing the adsorption capacity of oxygen and nitrogen difference on the molecular sieve surface through the principle of pressure adsorption and declining pressure desorption.

Email

Technical indicators

Oxygen production：1~300Nm³/h(Standard State).
Oxygen purity：93%±3%(National standard oxygen content).
Oxygen pressure：0.01~0.6Mpa(Gauge pressure is stable and adjustable).
Oxygen dew point：-40℃~-70℃(Atmospheric Dew Point).

Technical Parameters

Model	(Nm³/h) Gas production	(Nm³/min) air consumption	DN(mm) Imported nominal diameter DN	DN(mm) Imported nominal diameter DN	Air nominal diameter DN	L * W * H ( m m ) Host
HBF093-1	1	0.2	DN15	DN15	BL0010	8006501720
HBF093-2	2	0.4	DN15	DN15	BL0010	9509501500
HBF093-3	3	0.6	DN15	DN15	BL0010	10509001865
HBF093-5	5	1	DN20	DN15	BL0010	14509001825
HBF093-10	10	2	DN32	DN15	BL0020	14509001825
HBF093-15	15	3	DN40	DN25	HBHAD-4-0	18009501940
HBF093-20	20	4	DN40	DN25	HBHAD-6-0	185010252100
HBF093-25	25	5	DN50	DN25	HBHAD-6-0	200010502210
HBF093-30	30	6	DN50	DN25	HBHAD-8-0	200010502530
HBF093-50	50	10	DN65	DN25	HBHAD-13-0	220012502720
HBF093-60	60	12	DN65	DN40	HBHAD-15-0	225013002850
HBF093-80	80	16	DN80	DN40	HBHAD-20-0	235015503060
HBF093-100	100	20	DN100	DN40	HBHAD-25-0	250016003330
HBF093-120	120	24	DN100	DN40	HBHAD-30-0	260017003670
HBF093-150	150	30	DN150	DN40	HBHAD-40-0	470015002980
HBF093-180	180	36	DN200	DN40	HBHAD-40-0	470016003370
HBF093-200	200	40	DN200	DN40	HBHAD-60-0	500016003330
HBF093-240	240	48	DN200	DN50	HBHAD-60-0	520017003670
HBF093-300	300	60	DN250	DN50	HBHAD-80-0	590016004520
