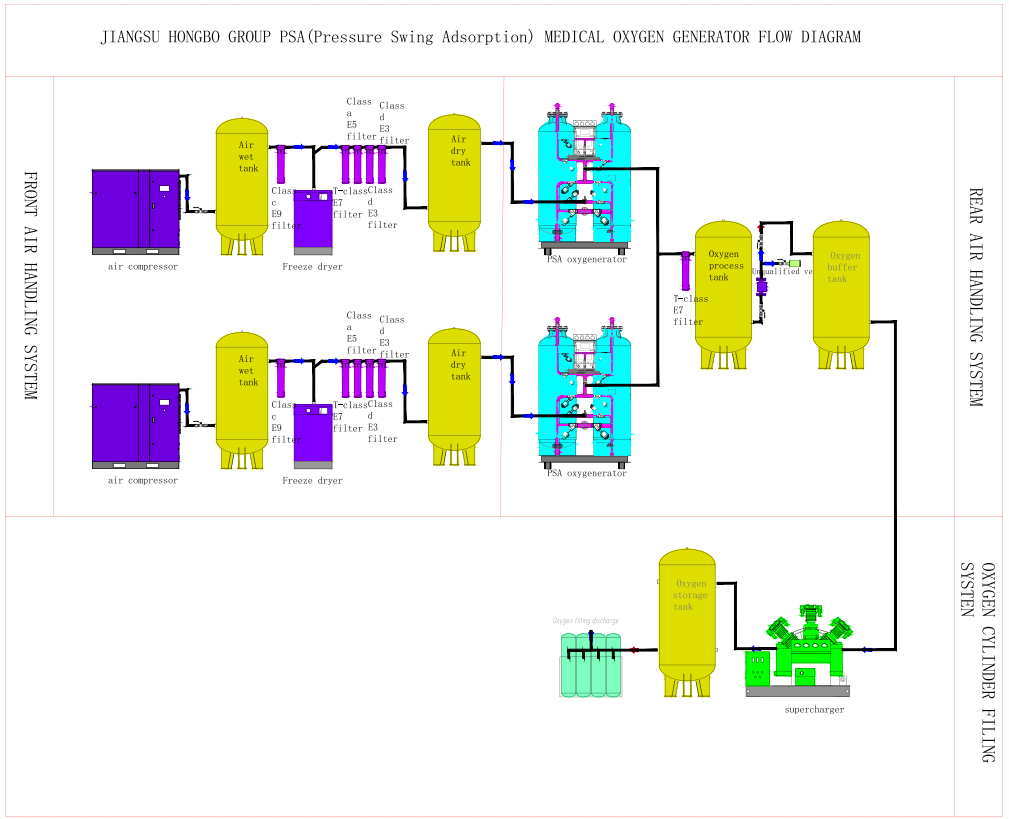

Oxygen generator diagram

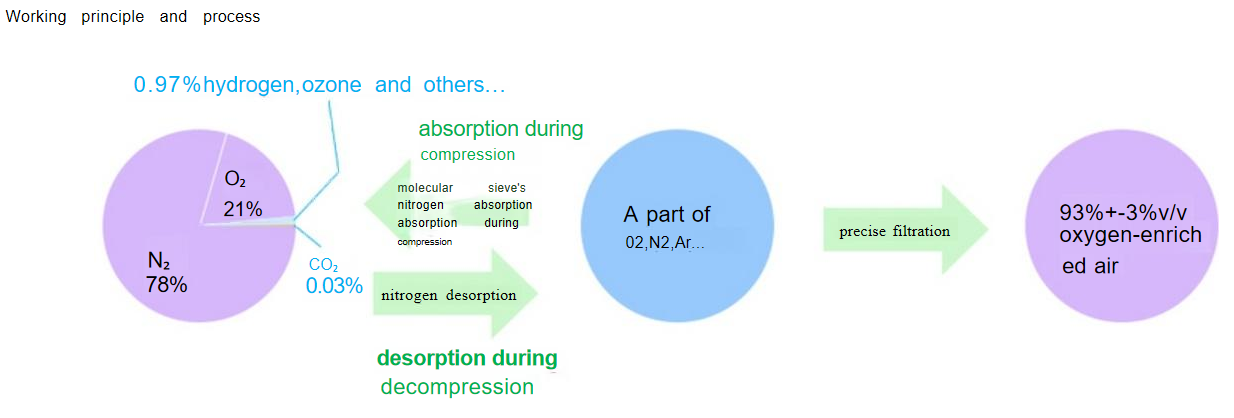

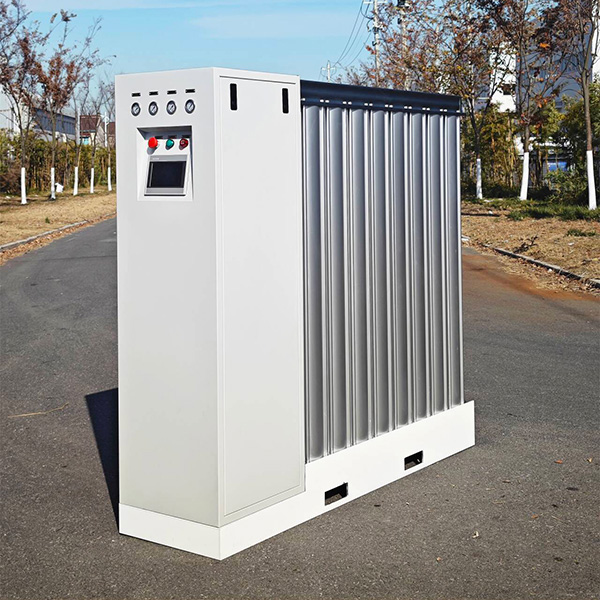

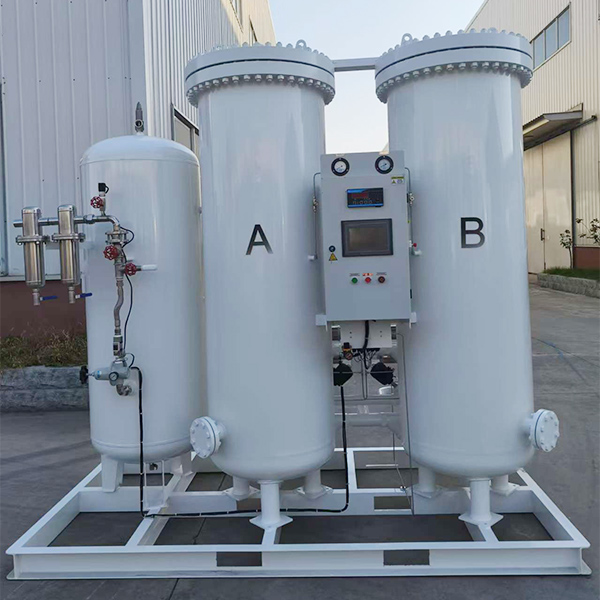

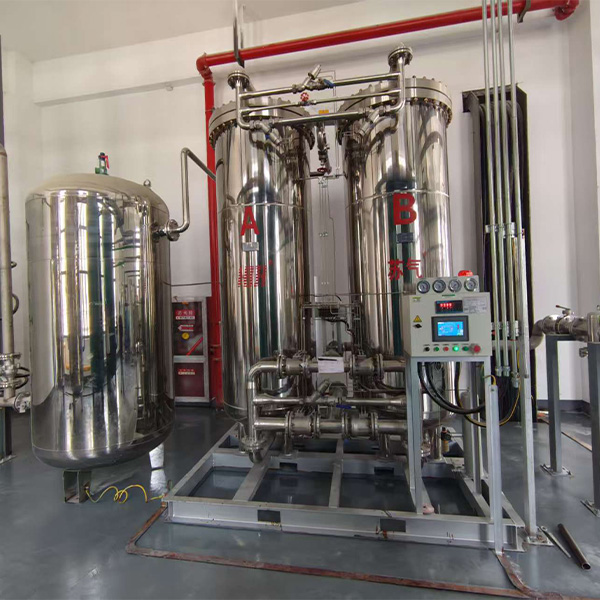

With air as material and molecular sieve as absorbent, HONGBO’s modular oxygen generator system is to adopt advanced PSA(Pressure Swing Adsorption) air separation technique to form a circulation process of absorption during compression and desorption during decompression so as to produce oxygen by separating oxygen and nitrogen in the air by using the physical property that under normal temperature and low pressure, so that the purity of oxygen is exceeded 93%+-3%v/v.
Technical Parameters
| Model | (Nm³/h) Gas production | (Nm³/min) air consumption | DN(mm) Imported nominal diameter DN | DN(mm) Imported nominal diameter DN | Air nominal diameter DN | L * W * H ( m m ) Host |
| HBF093-1 | 1 | 0.2 | DN15 | DN15 | BL0010 | 800*650*1720 |
| HBF093-2 | 2 | 0.4 | DN15 | DN15 | BL0010 | 950*950*1500 |
| HBF093-3 | 3 | 0.6 | DN15 | DN15 | BL0010 | 1050*900*1865 |
| HBF093-5 | 5 | 1 | DN20 | DN15 | BL0010 | 1450*900*1825 |
| HBF093-10 | 10 | 2 | DN32 | DN15 | BL0020 | 1450*900*1825 |
| HBF093-15 | 15 | 3 | DN40 | DN25 | HBHAD-4-0 | 1800*950*1940 |
| HBF093-20 | 20 | 4 | DN40 | DN25 | HBHAD-6-0 | 1850*1025*2100 |
| HBF093-25 | 25 | 5 | DN50 | DN25 | HBHAD-6-0 | 2000*1050*2210 |
| HBF093-30 | 30 | 6 | DN50 | DN25 | HBHAD-8-0 | 2000*1050*2530 |
| HBF093-50 | 50 | 10 | DN65 | DN25 | HBHAD-13-0 | 2200*1250*2720 |
| HBF093-60 | 60 | 12 | DN65 | DN40 | HBHAD-15-0 | 2250*1300*2850 |
| HBF093-80 | 80 | 16 | DN80 | DN40 | HBHAD-20-0 | 2350*1550*3060 |
| HBF093-100 | 100 | 20 | DN100 | DN40 | HBHAD-25-0 | 2500*1600*3330 |
| HBF093-120 | 120 | 24 | DN100 | DN40 | HBHAD-30-0 | 2600*1700*3670 |
| HBF093-150 | 150 | 30 | DN150 | DN40 | HBHAD-40-0 | 4700*1500*2980 |
| HBF093-180 | 180 | 36 | DN200 | DN40 | HBHAD-40-0 | 4700*1600*3370 |
| HBF093-200 | 200 | 40 | DN200 | DN40 | HBHAD-60-0 | 5000*1600*3330 |
| HBF093-240 | 240 | 48 | DN200 | DN50 | HBHAD-60-0 | 5200*1700*3670 |
| HBF093-300 | 300 | 60 | DN250 | DN50 | HBHAD-80-0 | 5900*1600*4520 |
