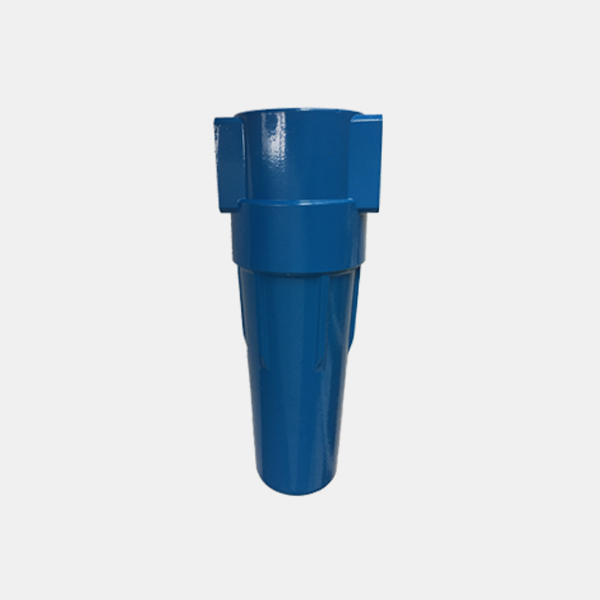

GW series gas water separator
GW series gas water separator
Product Features
The shell is made of high-quality aluminum alloy and carbon steel material, with a maximum pressure resistance of up to 16 kilograms.
Note: GW015-087 adopts aluminum alloy shell with inner row; GW140 adopts carbon steel body with external automatic drainage device.
Advanced surface treatment technology is used inside and outside the shell, which has high durability and corrosion resistance, and long service life.
The air flow direction is marked on the shell, making it easy to use and install.
Imported filter material, efficient and stable.
The automatic drainage device adopts an indirect drainage type to ensure smooth water flow, no blockage, and is reliable and durable.
Specification and model
| Model No. | Flow rate @ 7bar (M3/min) | Connection size (d) | Separation efficiency | Max.working temperature | Min.working temperature | MWP | Dimensions (mm) | ||
| ℃ | ℃ | bar | A | B | C | ||||
| GW015 | 1.5~2.4 | 1/2'' | ≥99% | 66 | 1.5 | 16 | 90 | 26 | 211 |
| GW025 | 2.5~3.6 | 3/4'' | 90 | 26 | 211 | ||||
| GW037 | 3.7~5.4 | 1'' | 90 | 26 | 211 | ||||
| GW055 | 5.5~8.6 | 1-1/4'' | 120 | 39 | 292 | ||||
| GW087 | 8.7~13 | 1-1/2'' | 120 | 39 | 292 | ||||
| GW140 | 14~29 | 2'' | 160 | 45 | 459 | ||||
