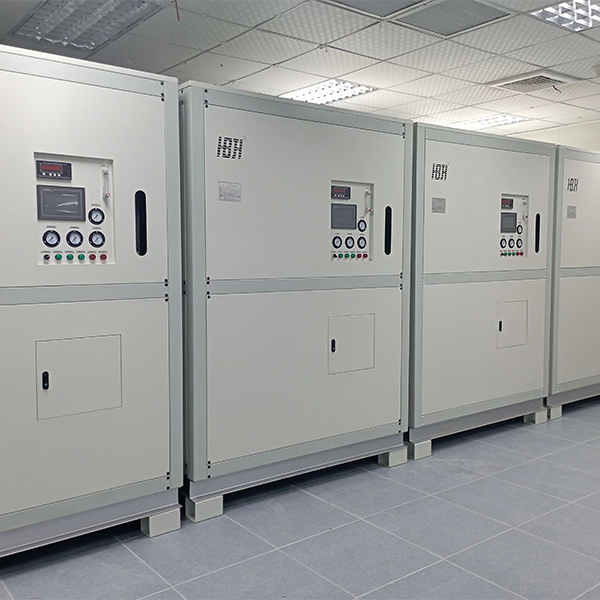

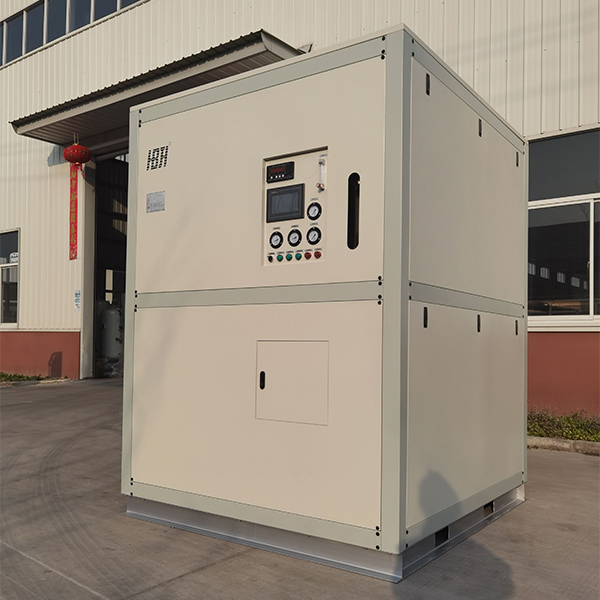

Box-type Nitrogen Generator for electronics industry, food packaging industry and Stable Gas Supply

Pressure swing adsorption (PSA) nitrogen generator is an automatic equipment which uses carbon molecular sieve as adsorbent, and uses the principle of pressure adsorption and pressure reduction desorption to absorb oxygen from air, thus separating nitrogen.

Email

Product Introduction

Raw material air is taken from nature. Nitrogen can be produced by supplying compressed air and power.
Nitrogen purity can be adjusted conveniently and arbitrarily between 90% and 99.999%.
The equipment has a high degree of automation, fast gas production, and can be unattended. Qualified gas can be generated within 10-30 minutes of the first startup. The qualified gas is obtained after the second startup for 3-10 minutes.
The equipment process is simple, occupies a small area, consumes less energy and costs.
On-line inspection of imported analyzer with high accuracy and maintenance-free.
Molecular sieves are filled by snowstorm method to avoid the pulverization of molecular sieves caused by high-pressure air flow impact and ensure the long-term use of molecular sieves.

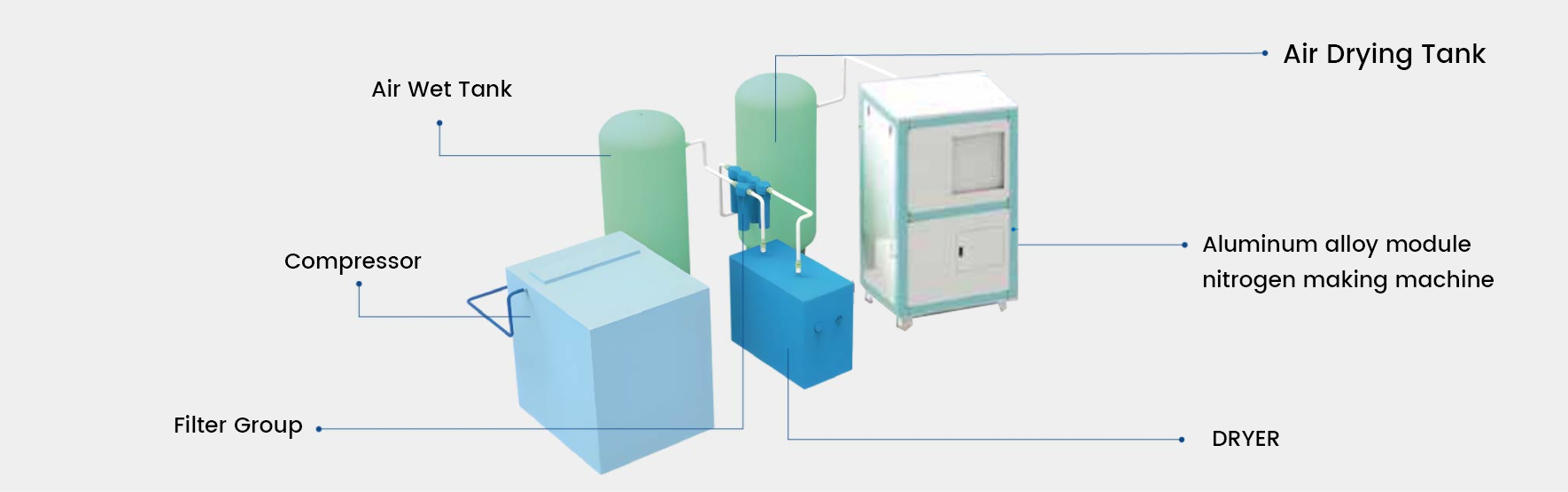

Flow Chart Of Nitrogen Machine

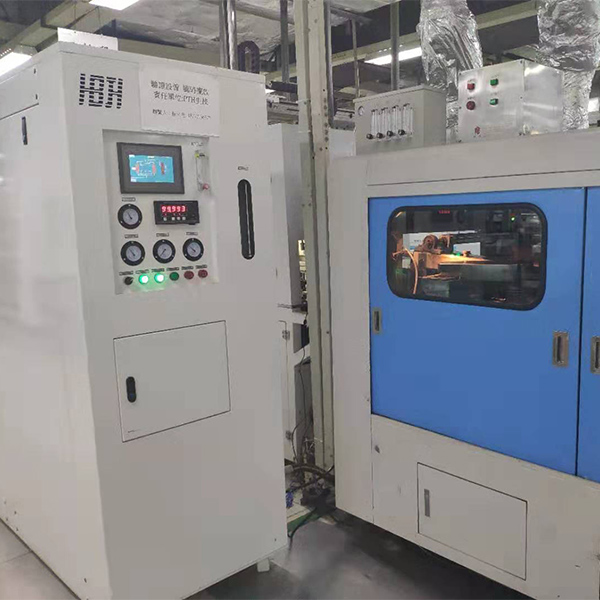

nitrogen generator for beverage industry

Product Parameters

HBFD(Box Nitrogen generator)
Model	Nitrogen purity	Nitrogen production	(Nm³/min) Effective air consumption	(DNmm) Inlet pipe size	(DNmm) Outlet pipe diameter	LWH(mm) Host
HBFD-1	29	5.5	0.19	DN15	DN15	8006501240
	295	4.5	0.18
	39	3	0.15
	49	1.5	0.11
	59	1	0.09
HBFD-2	29	8.5	0.30	DN15	DN15	8006501720
	295	6	0.24
	39	4.5	0.23
	49	3	0.22
	59	1.5	0.14
HBFD-3	29	20	0.70	DN15	DN15	9509501500
	295	16	0.65
	39	11.5	0.58
	49	6.5	0.47
	59	4.5	0.42
HBFD-4	29	30	1.05	DN20	DN15	10509001870
	295	25	1.02
	39	18	0.91
	49	10	0.72
	59	7	0.65
HBFD-5	29	55	1.93	DN25	DN15	115011302010
	295	45	1.83
	39	33	1.66
	49	20	1.44
	59	13	1.21
HBFD-6	29	30	1.05	DN20	DN15	136011001870
	295	25	1.02
	39	18	0.91
	49	10	0.72
	59	7	0.65
HBFD-7	29	75	2.63	DN25	DN20	125012502010
	295	60	2.44
	39	45	2.27
	49	28	2.02
	59	20	1.87
HBFD-8	39	65	3.27	DN40	DN25	150013502200
	49	40	2.88
	59	26	2.43
HBFD-9	39	80	4.03	DN40	DN25	150013502200
	49	48	3.46
	59	33	3.08
HBFD-10	39	90	4.53	DN40	DN40	155014502200
	49	55	3.96
	59	38	3.55
HBFD-11	39	140	7.7	DN40	DN40	175018502350
	49	80	5.2
	59	50	4.8
HBFD-12	39	170	9.4	DN50	DN40	185019002450
	49	100	6.5
	59	60	5.8
