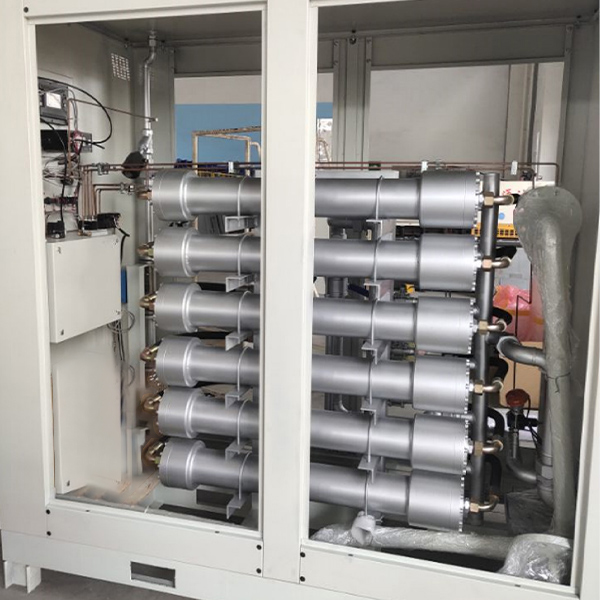

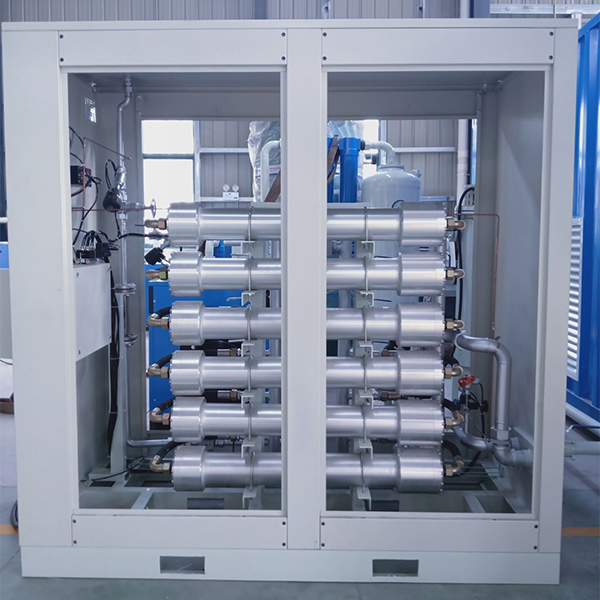

Energy Efficient Membrane Nitrogen Generator for petroleum oil and gas , metal processing and heat treatment, aerospace, power industry, etc.

The main principle of membrane separation Nitrogen equipment is selective permeation.Each gas component in the air has its unique permeability and permeability in the polymer film,showing the ability to dissolve and diffuse in each component through the polymer film.According to this characteristic,the gas with faster permeability of polymer membrane can be separated from the slow gas such as nitrogen.

Email

Product characteristics

The membrane separation system provides a simple,low maintenance and economical method for the production of nitrogen.
Low moving parts and low maintenance workload.
Standard film component integrated engineering design,quick installation,simple operation.
Nitrogen product quality is stable and reliable.
Nitrogen production capacity can be increased.
Product nitrogen clean,low dew point.

Process flow diagram

nitrogen generator for food packaging

Product Parameters

HBFM95 type
Model	(Nm3/h) Gas production	(Nm3/min) Air consumption	(mm) Imported nominal diameter DN	DN(mm) Export nominal diameter DN
HBFM95-50	50	2.1	32	25
HBFM95-60	60	2.55	32	25
HBFM95-70	70	2.9	32	25
HBFM95-80	80	3.4	40	25
HBFM95-100	100	4.25	40	25
HBFM95-120	120	5.1	40	32
HBFM95-150	150	6.38	50	32
HBFM95-180	180	7.65	50	40
HBFM95-200	200	8.5	50	40
HBFM95-300	300	12.77	65	40
HBFM95-400	400	17	65	50
HBFM95-500	500	20.4	80	50
HBFM95-600	600	24.5	80	50
HBFM95-800	800	24.5	100	65
HBFM95-1000	1000	32.6	100	65
HBFM95-1200	1200	40.8	100	80
HBFM95-1500	1500	61.2	125	80
HBFM95-2000	2000	81.6	150	100

HBFM99 type
Model	(Nm3/h) Gas production	(Nm3/min) Air consumption	DN(mm) Imported nominal diameter DN	DN(mm) Export nominal diameter DN
HBFM99-15	15	1.2	25	25
HBFM99-20	20	1.6	25	25
HBFM99-25	25	2	32	25
HBFM99-30	30	2.4	32	25
HBFM99-50	50	4	40	25
HBFM99-60	60	4.8	40	25
HBFM99-80	80	6.4	50	25
HBFM99-100	100	8	50	25
HBFM99-150	150	12	50	32
HBFM99-180	180	14.4	65	40
HBFM99-200	200	16	65	40
HBFM99-250	250	20	65	40
HBFM99-300	300	24	80	40
HBFM99-350	350	28	80	40
HBFM99-400	400	32	100	50
HBFM99-450	450	36	100	50
HBFM99-500	500	40	100	50
HBFM99-600	600	48	100	50
HBFM99-800	800	64	150	65
HBFM99-1000	1000	80	150	65
HBFM99-1200	1200	96	150	80
HBFM99-1500	1500	120	200	80
HBFM99-2000	2000	160	250	100
Note: The above data is based on 0.8Mpa(G)feed air, ambient temperatuer 20℃ , 0 m elevation and 80% relative humidity as design basis.
