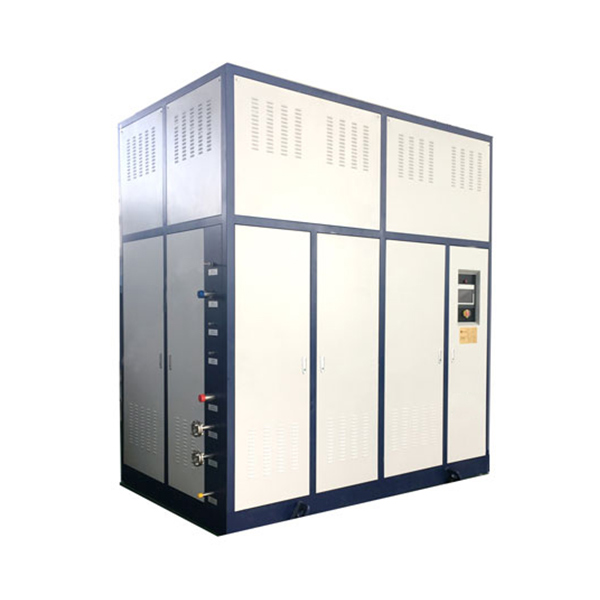

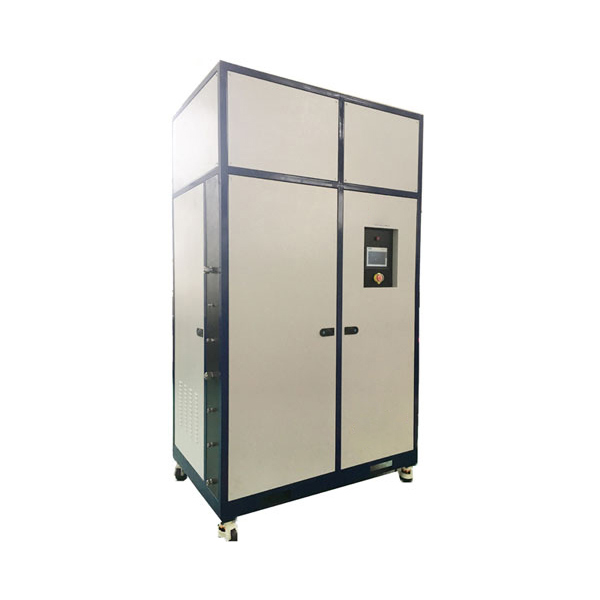

High Purity Nitrogen Gas Purifier System

Suitable for PSA nitrogen making machine, the raw gas is not less than 99.99%.

Features

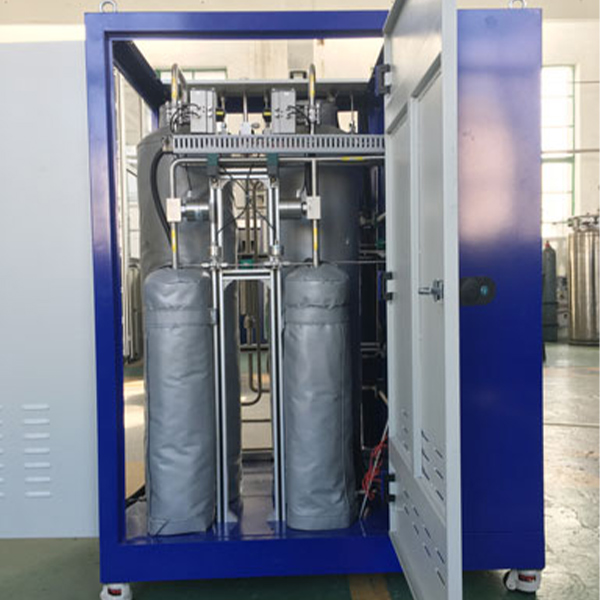

● Two towers alternate adsorption regeneration, automatic continuous operation
● Deep removal of impurities O2, H2O, CO, CO2, H2 and NMHC to 0.1ppm
● 316L stainless steel pipe fittings
● Removal rate up to 99.9999999% with 0.003 m filter
● Siemens PLC can be connected to DCS system
● The security alarm function is perfect
● Remote cloud service is available
● Production and assembly in a super clean environment
● Gas capacity 10-20000nm3/h

Table Parameters

The nitrogen making machine is matched with a gas purifier
Gas source	PSA
processing(Nm3/h)	50	100	150	200	250	300	400	500	600
Power consumption(kW/h)	4.5	6.5	9	10.5	11.5	12.5	16	19	22.5
Using the pressure(Mpa)	1
Maximum differential pressure(Mpa)	0.1
Purified index	100.00%
The service life of the	20 years
Can be customized according to customer requirements, special models of products.
