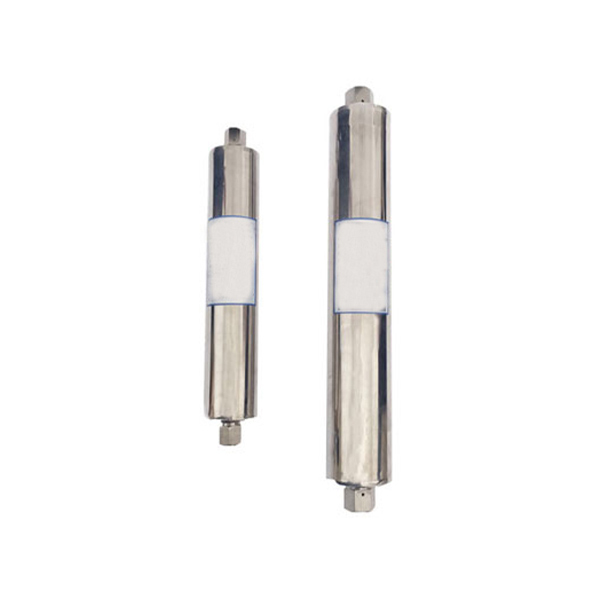

Industrial gas purifier manufacturer supply On-site nitrogen purifier installation

● Experimental analysis, scientific research and development.
● Integrated circuit manufacturing, MAMS.
● Single crystal silicon, polysilicon and silicon epitaxy Low leds, TFT.
● Gallium nitride, silicon carbide, etc.
● Gas purge, welding.
● Ammonia purifier is applied in scientific research institutes.
● Small terminal hydrogen purifier for high-tech instrument companies.

Email

Characteristics

● Use at room temperature.
● Repeated regeneration.
● High removal depth of impurities.
● Built-in micron filter, unique structure, prevent clogging.
● Various models can be customized according to user needs.
● Low usage cost.

Table Parameters

8NPSeries conventional model parameter table
Applicable gas	N2, H2, O2, Ar, He, NH3, SiH4, HCL
Processing capacity (L/min)	5	10	20	30	50	100	150	200	300	500	800	1000
Length (mm)	120	150	225	220	200	385	500	360	508	760	600	716
diameter	2'			2.5'	3'			4'
Inlet/outlet connector	1/4 VCR							1/2 VCR
Working pressure (Mpa)	1
Maximum gas pressure difference (Mpa)	0.1
Purification index	Single impurity＜1ppb
Service life	Six months (return to factory for regeneration)
ØOSpecial models can be customized according to customer requirements.

9NP series conventional model parameter table
Applicable gas	N2, H2, O2, Ar, He, NH3, SiH4, HCL
Processing capacity (L/min)	5	10	20	30	50	100	150	200	300	500	800	1000
Length (mm)	130	180	275	260	380	500	435	550	780	600	900	1100
diameter	2'			2.5'		3'	4'			6'
Inlet/outlet connector	1/4 VCR							1/2 VCR
Working pressure (Mpa)	1
Maximum gas pressure difference (Mpa)	0.1
Purification index	Single impurity＜0.1ppb
Service life	Six months (return to factory for regeneration)
ØOSpecial models can be customized according to customer requirements.
