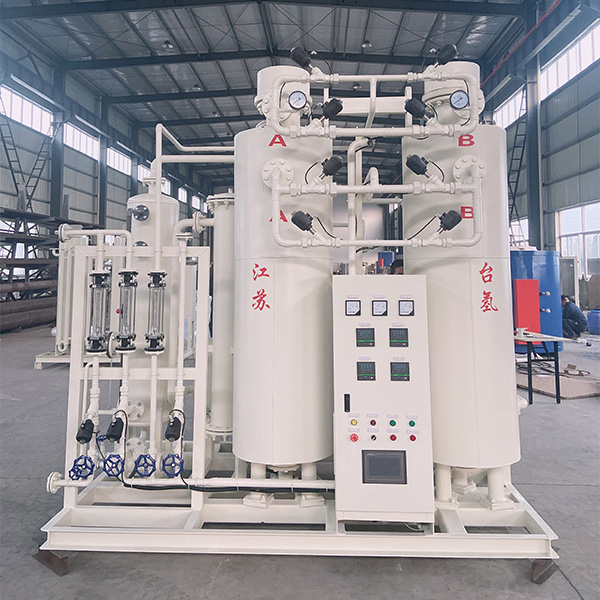

PSA Hydrogen Purification Device with Deoxo Unit for High Purity Hydrogen

• The pressure swing adsorption hydrogen production unit uses a hydrogen-containing mixed gas as raw material. Through a special molecular sieve, it utilizes the principle of pressure swing adsorption to obtain hydrogen at room temperature equipment.

• Based on the differences in adsorption capacity of hydrogen and nitrogen gases on the molecular sieve surface and the varying diffusion rates of hydrogen and nitrogen within the carbon molecular sieve, the system uses a programmable logic controller (PLC) to control the opening and closing of programmable valves, thereby achieving the processes of pressure adsorption and pressure reduction desorption. This enables the separation of hydrogen and nitrogen gases, yielding hydrogen of the desired purity.

Rapid startup, quickly providing qualified hydrogen gas. Fully automatic operation, with the entire process capable of unmanned operation. Efficient molecular sieve packing, tighter and more compact, resulting in a longer service life. Pressure, purity, and flow rate are stable and adjustable to meet different customer requirements. Rational structure, advanced process, safe and stable operation, with low equipment investment and energy consumption.

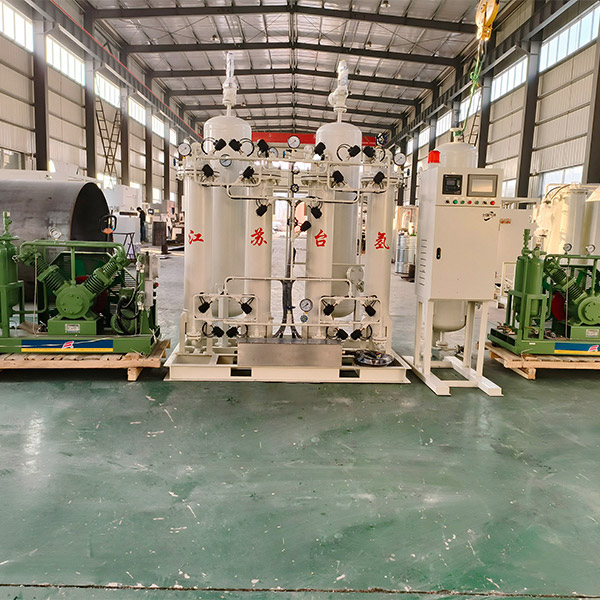

Liquid ammonia storage tank (or liquid ammonia cylinder) → Ammonia manifold → Ammonia pressure reducing valve assembly → Ammonia decomposition and purification unit → Low-pressure hydrogen-nitrogen gas buffer tank → Hydrogen-nitrogen gas compressor → High-pressure hydrogen-nitrogen gas buffer tank → Pressure swing adsorption hydrogen production unit (oil removal filter → four-tower pressure swing adsorption hydrogen production → pure hydrogen buffer tank) → Customer usage point

• Electronics Industry: Used in the manufacturing of single-crystal silicon and diffusion processes in integrated circuit production, as well as the production of light-emitting diodes (LEDs) and liquid crystal displays (LCDs).

• Metallurgy Industry: Used in intermediate annealing and final annealing of precision copper and steel strips.

• Mechanical Industry: Used in annealing processes for bearings and precision mechanical parts.

• Powder Metallurgy Industry: Used in sintering processes in powder metallurgy.

• Tungsten-Molybdenum Reduction Industry: Hydrogen deep reduction processes in four-tube furnaces, multi-tube furnaces, and reduction furnaces.

• Bright annealing of precision stainless steel sheets, stainless steel tubes, carbon steel tubes, and carbon steel sheets.

• Sintering in stainless steel powder metallurgy, with hydrogen used for protection.
